Spray Painting Booths

Water Wash Paint Booths


Most elevated proficiency in a spray booth can constantly be accomplished when the capacity, size and different specifications are most suited to the sort of work to be performed.

The accompanying elements are critical while choosing the most effective booth for a particular coating component

  • The method of product handling
  • The article size that requires coating
  • The production rate or the estimation of paint consumption
  • Features

  • Its superior construct is built with nut-bolt
  • The suction at the bottom helps in sucking any over sprayed paint
  • The pump helps in accomplishing water curtain. Its low installed electrical load reduces running cost and the maintenance cost is almost negligible
  • A high level efficiency in air washing/paint collection is maintained by the advanced air washer design
  • A balanced air movement in the booth is maintained by the air-slot design. It’s featured with an opening at the bottom of the wash down sheet ( water wall )

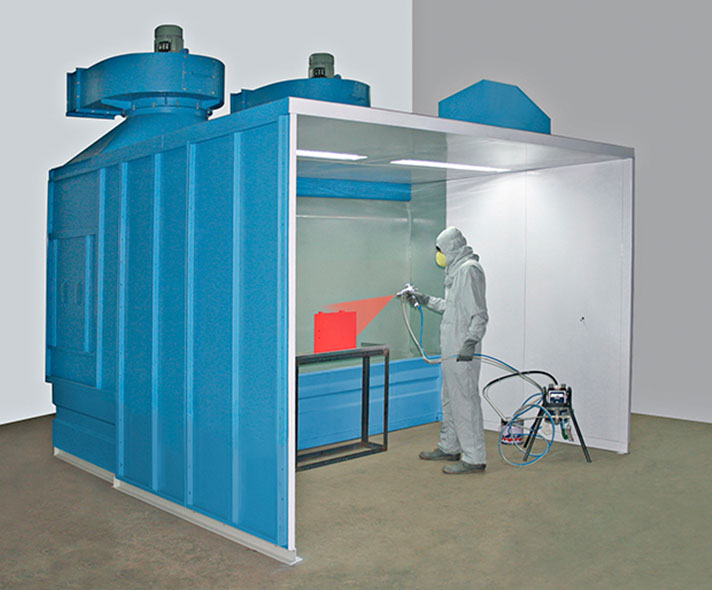

  • water wash paint booth
    water wash paint booth
    water wash paint booth

    Side Draft Wet Spray Booths


    Models Dimension in (mm) Exhaust Blower Pump Tube Lights
    W/w D/d H/h Capacity M3/hr Motor Rating Cap. Watts Nos.
    DynaSpary- WW15 2000/1500 2850/1500 3600/2100 1 x 6800 1 x 3.12 KW 1.5 KW 2 x 36 1
    DynaSpary- WW21 2600/2100 2850/1500 3600/2100 1 x 7900 1 x 3.70 KW 2.25 KW 2 x 36 1
    DynaSpary- WW30 3500/3000 3250/1800 3600/2100 2 x 6800 2 x 3.12 KW 3.75 KW 2 x 36 2
    DynaSpary- WW36 4100/3600 3250/1800 3600/2100 2 x 7900 2 x 3.70 KW 3.75 KW 2 x 36 3


    1. W x D x H : Overall Width x Depth x Height
    2. w x d x h : Working Width x Depth x Height

    Larger sizes are available against specific requirements.

    Optional: Flameproof accessories are available against specific requirements.

    Also available in stainless steel construction.
